Lima Locomotive & Machine Co.
Photo Credit:

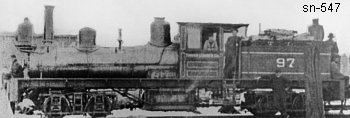

Left: Fred Hirzel collection, courtesy of Clarke Historical Library

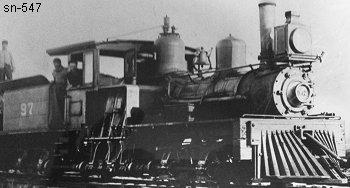

Right: Mrs. T. Walter Keller collection
Shop Number 547 - Built for: Thayer Lbr. Co.
{494th Lima Built Shay}
Built:
2-3-1898
Class:
B
32-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 12
Gear Ratio:
2.05
Wheel Dia.:
29.5"
Gauge:
std
Boiler:
[Style - Dia.]
W.T. - 40"
Boiler Pressure:
In Lbs. (PSI)
160
 Tractive Effort:
15,010 Lbs.
 Factor of
Adhesion:
4.88
Maximum
Safe Speed:
17.1
Fuel Type:
Coal
Fuel Capacity:
2 Tons
Water Capacity:
1,800 Gallons
Empty Weight:
As built
56,500
Owners:
Thayer Lbr. Co. #547 later #97, Muskegon, MI
(1908) Louis Sands Salt & Lbr. Co., Manistee, MI
DeLattrie & Anderson Lbr. Co. #547, Calderwood, MI
(7-13-1921) Calderwood Lbr. Co. #2, Calderwood, MI
Disposition: Scrapped
Additional Notes:
