Lima Locomotive & Machine Co.



Photo Credit:

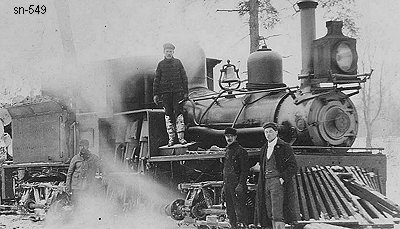

Upper: by unknown (c1899 first owner)

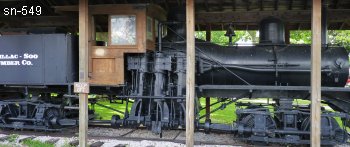

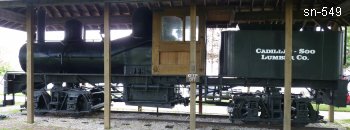

Lower Both: by David Higley (6-12-2012)
Shop Number 549 - Built for: Boyne City & Southeastern RR
{496th Lima Built Shay}
Built:
4-9-1898
Class:
B
30-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 12
Gear Ratio:
2.05
Wheel Dia.:
32.5"
Gauge:
std
Boiler:
[Style - Dia.]
W.T. - 40"
Boiler Pressure:
In Lbs. (PSI)
160
 Tractive Effort:
15,010 Lbs.
 Factor of
Adhesion:
4.61
 Maximum
Safe Speed:
17.1
Fuel Type:
Coal
Fuel Capacity:
2 Tons
Water Capacity:
1,200 Gallons
Empty Weight:
As built
55,000
Owners:
Boyne City & Southeastern RR Co., Boyne City & Southeastern RR #3, Boyne City, MI
(3-14-1914) Boyne City, Gaylord & Alpena RR Co., Boyne City, Gaylord & Alpena RR, Boyne City, MI
(9-25-1918) Michigan Forest Products #3, Strongs, MI
Cadillac Lumber & Chemical Co. #3, Sault Sainte Marie, MI
(1-19-1924) Cadillac-Soo Lbr. Co. #3, Sault Sainte Marie, MI
(9-20-1956) City of Cadillac, Cadillac, MI
Disposition: On display in Town Park, Cadillac, MI
Additional Notes:
SLc Survivor List
