Lima Locomotive & Machine Co.

Photo Credit:
John T. Labbe collection

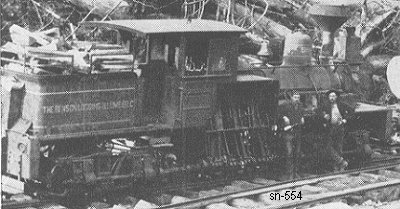

Shop Number 554 - Built for: Benson Log. & Lumbering Co.
{501st Lima Built Shay}
Built:
3-7-1898
Class:
B
20-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 9 x 8
Gear Ratio:
3.071
Wheel Dia.:
26"
Gauge:
std.
Boiler:
[Style - Dia.]

W.T. - 34"
Boiler Pressure:
In Lbs. (PSI)
160
Tractive Effort:
13,777 Lbs.
Factor of
Adhesion:

3.47
Maximum
Safe Speed:

10.1
Fuel Type:
Wood & Coal
Fuel Capacity:
1.25 Cords / 1.5 Tons
Water Capacity:
800 Gallons
Empty Weight:
As built
38,000
Owners:
Benson Log. & Lumbering Co. #554, Oak Point, WA
(1903) Coast Range Lbr. Co., Mabel, OR
Falls City Lbr. Co. #1, Falls City, OR
Falls City Lbr. & Log. Co., Falls City, OR
(3-9-1921) Cobbs & Mitchell Co., Valsetz, OR
(11-22-1927) For sale
Disposition: Scrapped
Additional Notes:
