Lima Locomotive & Machine Co.
Photo Credit:

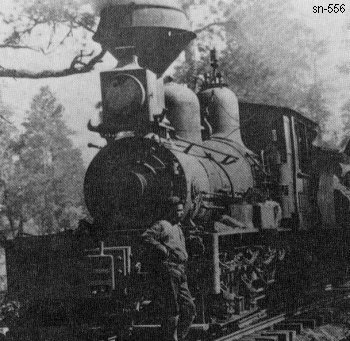

Left: Northern Arizona University collection

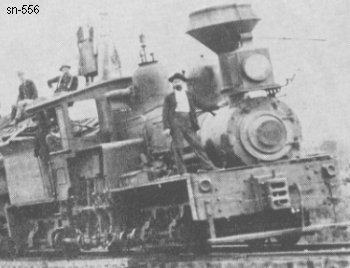

Right: C. W. Witbeck collection
Shop Number 556 - Built for: Saginaw Lbr. Co.
{503rd Lima Built Shay}
Built:
5-20-1898
Class:
B
40-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.211
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 44"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
20,306 Lbs.
 Factor of
Adhesion:
4.26
 Maximum
Safe Speed:
17.2
Fuel Type:
Coal
Fuel Capacity:
3.25 Tons
Water Capacity:
1,800 Gallons
Empty Weight:
As built
66,500
Owners:
Saginaw Lbr. Co., Saginaw Southern RY #556, Willaims, AZ
(12-7-1899) Saginaw and Manistee Lbr. Co., Saginaw Southern RY #556, Williams, AZ
United Lbr. Co., Humbert, PA
(1-24-1921) Schofield Lbr. Co. # 2, Humbert, PA
(5-23-1927) For sale
Disposition: Scrapped
Additional Notes:
