Lima Locomotive & Machine Co.

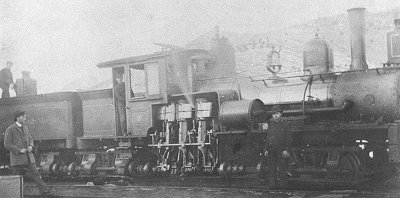

Photo Credit:
Lynn Jones collection (c1910)
Shop Number 563 - Built for: Salt Lake & Mercur RR
{510th Lima Built Shay}
Built:
12-7-1898
Class:
C
50-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 12
Gear Ratio:
2.21
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 46"
Boiler Pressure:
In Lbs. (PSI)
150
 Tractive Effort:
6,112 Lbs.
 Factor of
Adhesion:
6.05
Maximum
Safe Speed:
14.2
Fuel Type:
Coal
Fuel Capacity:
3.8 Tons
Water Capacity:
2,000 Gallons
Empty Weight:
As built
89,820
Owners:
Salt Lake & Mercur RR #5, Fairfield, UT
(by 9-1913) For sale, operation closed
(4-29-1914) Zimmerman Wells & Brown Co. (D), Portland, OR *
(1-19-1921) Eastern RY & Lbr. Co. #5, Centralia, WA
S. A. Agnew Lbr. Co. #5, Centralia, WA
Disposition: Scrapped
Additional Notes: * Owned by Dealer
