Lima Locomotive & Machine Co.

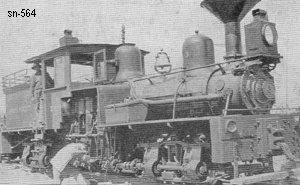

Photo Credit:
1904 American Lumberman
Shop Number 564 - Built for: Rapides Lbr. Co., Ltd.
{511th Lima Built Shay}
Built:
11-12-1898
Class:
B
20-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 9 x 8
Gear Ratio:
2.176
Wheel Dia.:
26"
Gauge:
36"
Boiler:
[Style - Dia.]
W.T. - 34"
Boiler Pressure:
In Lbs. (PSI)
160
 Tractive Effort:
9,780 Lbs.
 Factor of
Adhesion:
5.11
Maximum
Safe Speed:
14.2
Fuel Type:
Wood
Fuel Capacity:
1.25 Cords
Water Capacity:
1,000 Gallons
Empty Weight:
As built
40,400
Owners:
Rapides Lbr. Co., Ltd. (Long-Bell), #3, Woodworth, LA
(1916) Rapides Lbr. Co., Ltd. (Long-Bell), Woodworth & Louisiana Central RR #3, Woodworth, LA
(8-6-1922) Thistlethwaite Lbr. Co. #3, Washington, LA
(12-1923) Out of service
Disposition: (1929) Scrapped
Additional Notes:
