Lima Locomotive & Machine Co.

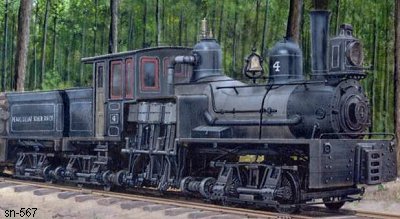

Photo Credit:
Painting by Tony Howe
Shop Number 567 - Built for: J. J. Newman Lbr. Co.
{514th Lima Built Shay}
Built:
2-13-1899
Class:
C
50-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 12
Gear Ratio:
2.21
Wheel Dia.:
32"
Gauge:
std.
 Boiler:
[Style - Dia.]
W.T. - 44"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
24,166 Lbs.
 Factor of
Adhesion:
4.49
 Maximum
Safe Speed:
17.2
Fuel Type:
Coal
Fuel Capacity:
3.8 Tons
Water Capacity:
2,000 Gallons
Empty Weight:
As built
86,774
Owners:
J. J. Newman Lbr. Co., Pearl & Leaf Rivers RR #4, Hattiesburg, MS
Bienville Lbr. Co., Alberta, LA
(1915) Bienville Lbr. Co. #4, Forest, MS
Disposition: (after 1931) Scrapped
Additional Notes:
