Lima Machine Works

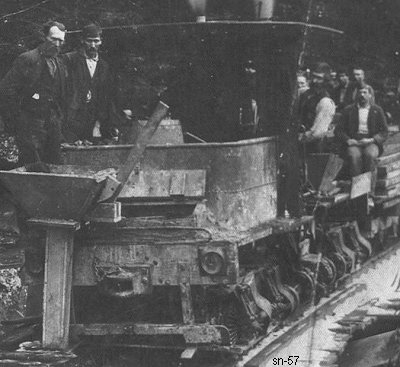

Photo Credit:
Ed Vasser collection
Shop Number 57 - Built for: J. M. Wesson
{33rd Lima Built Shay}
Built:
12-20-1882
Class:
A
7-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
2 - 7x7
Gear Ratio:
2.50
Wheel Dia.:
22"
Gauge:
36"
Boiler:
[Style - Dia.]

Vert.- 44"
Boiler Pressure:
In LBS (PSI)
80
Tractive Effort:
2,339 LBS
Factor of
Adhesion:

6.14
Maximum
Safe Speed:

10.5
Fuel Type:
Wood
Fuel Capacity:
2 Cords
Water Capacity:
500 Gallons
Empty Weight:
As built
9,000
Owners:
J. M. Wesson, Bogue Chitto, MS
Whitney & Johnson, Summit, MS
(1890) Hartman Lbr. Co. #57, Hartman, MS
Swann-Day Lbr. Co., Mountain Central RY, Clay City, KY
(2-14-1898) D. H. Eastin & Co., Walkers Creek, KY
Disposition: Scrapped
Additional Notes:
