Lima Locomotive & Machine Co.

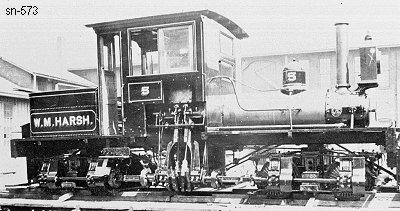

Photo Credit:
University of Michigan Engineering & Transportation Library (BP 4-1899)
Shop Number 573 - Built for: Kelley Island Lime & Transport Co.
{519th Lima Built Shay}
Built:
4-13-1899
Class:
A
10-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
2 - 6 x 10
Gear Ratio:
2.5
Wheel Dia.:
21.5"
Gauge:
36"
Boiler:
[Style - Dia.]
Boot - 30"
Boiler Pressure:
In Lbs. (PSI)
150
 Tractive Effort:
4,709 Lbs.
 Factor of
Adhesion:
4.88
 Maximum
Safe Speed:
10.2
Fuel Type:
Wood & Coal
Fuel Capacity:
.33 Cords / .45 Tons
 Water Capacity:
235 Gallons
Empty Weight:
As built
20,800
Owners:
Kelley Island Lime & Transport Co. #5 "W. M. HARSH", Kelley's Island, OH
Disposition: (11-27-1929) Scrapped, Martin OH
Additional Notes:
