Lima Locomotive & Machine Co.

Photo Credit:
Mrs. Stokes Collection from S. David Carriker

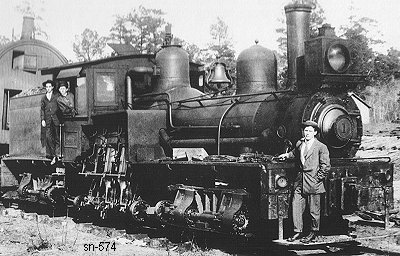

Shop Number 574 - Built for: N. L. Hoover
{520th Lima Built Shay}
Built:
5-20-1899
Class:
B
40-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.21
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]

W.T. - 44"
Boiler Pressure:
In Lbs. (PSI)
180
Tractive Effort:
20,306 Lbs.
Factor of
Adhesion:

4.46
Maximum
Safe Speed:

17.2
Fuel Type:
Coal
Fuel Capacity:
3.25 Tons
Water Capacity:
1,800 Gallons
Empty Weight:
As built
70,200
Owners:
N. L. Hoover, Cush Creek & Mahoning RR #1 (2nd), Hooverhurst, PA
(c1906) N. L. Hoover Lbr. Co. #1, Cash, SC
Vosburg Lbr. Co., Cheraw, SC
Anderson Co., Cheraw, SC
Anderson & Duall, Cheraw, SC
Southern Iron & Equip. Co. (D) #1278, Atlanta, GA
(4-2-1918) Powers & Magill #1, Vance, AL
(5-1919) Deal-Powers Lbr. Co. #1, Vance, AL
Disposition: (1926) Scrapped
Additional Notes:
