Lima Locomotive & Machine Co.

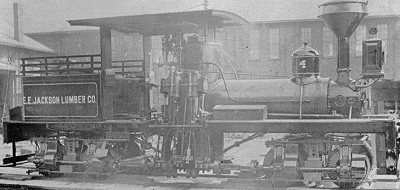

Photo Credit:
University of Michigan Engineering & Transportation Library (BP 10-1899)
Shop Number 575 - Built for: E. E. Jackson Lbr. Co.
{521st Lima Built Shay}
Built:
10-3-1899
Class:
A
13-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
2 - 7 x 12
Gear Ratio:
3.071
Wheel Dia.:
26"
Gauge:
41"
Boiler:
[Style - Dia.]
Boot - 36"
Boiler Pressure:
In Lbs. (PSI)
150
 Tractive Effort:
7,813 Lbs.
 Factor of
Adhesion:
3.74
Maximum
Safe Speed:
10.1
Fuel Type:
Wood
Fuel Capacity:
0.33 Cord
Water Capacity:
729 Gallons
Empty Weight:
As built
24,700
Owners:
E. E. Jackson Lbr. Co., Riderville, Centerville & Blocton RR #4, Riderville, AL
Disposition: (1916) Scrapped at Riderville, AL
Additional Notes:
