Lima Locomotive & Machine Co.

Photo Credits:
Collection of Richard L. Crowell, Jr. from Southern Forest Heritage Museum (BP 9-1899)

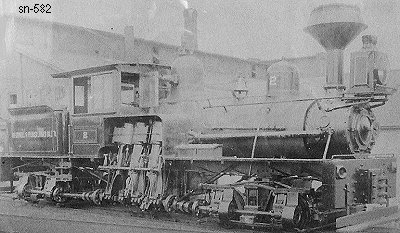

Shop Number 582 - Built for: Crowell & Spencer Lbr. Co.
{528th Lima Built Shay}
Built:
9-18-1899
Class:
B
28-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 10
Gear Ratio:
2.05
Wheel Dia.:
28"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 40"
Boiler Pressure:
In Lbs. (PSI)
160
 Tractive Effort:
13,179 Lbs.
 Factor of
Adhesion:
5.13
 Maximum
Safe Speed:
16.3
Fuel Type:
Coal & Wood
 Fuel Capacity:
1.75 Tons
Water Capacity:
1,430 Gallons
Empty Weight:
As built
52,600
Owners:
Crowell & Spencer Lbr. Co., Ltd. #2, Longleaf, LA
Disposition: (8-1955) Scrapped at Longleaf, LA, some parts remain in woods.
Additional Notes:
