Lima Locomotive & Machine Co.

Photo Credit:
John B. Allen collection

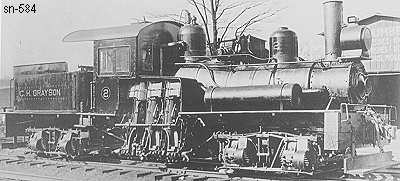

Shop Number 584 - Built for: Freeman Lbr. Co.
{530th Lima Built Shay}
Built:
8-9-1899
Class:
B
40-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 12
Gear Ratio:
2.05
Wheel Dia.:
29.5"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 40"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
16,886 Lbs.
 Factor of
Adhesion:
4.26
 Maximum
Safe Speed:
17.1
Fuel Type:
Coal
Fuel Capacity:
2 Tons
Water Capacity:
1,500 Gallons
Empty Weight:
As built
56,500
Owners:
Freeman Lbr. Co. #2, Millville, AR
Freeman-Smith Lbr. Co., Ouachita Valley RY #2, Millville, AR
Birmingham Rail & Loco. Co.(D), Birmingham, AL *
(2-5-1912) Logan Lbr. Co., Mansfield, LA
Birmingham Rail & Loco. Co.(D), Birmingham, AL
(1-31-1918) J. G. White Engineering Corp. #1, Muscle Shoals, AL
(8-17-1921) Georgia Car & Loco. Co.(D) #477, Atlanta, GA *
(6-1922) C. H. Grayson Lbr. Co. #2, Leeds, AL
(1-1923) Vida Lbr. Co. #2 (2nd), Leeds, AL
(9-20-1927) For Sale, Henry-Ellen, AL
Disposition: (1929) Scrapped at Leeds, AL
Additional Notes: * Owned by Dealer
