Lima Locomotive & Machine Co.

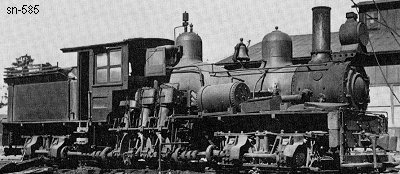

Photo Credit:
by R. P. Middlebrook from Stan Kistler collection
Shop Number 585 - Built for: Saginaw Lbr. Co.
{531st Lima Built Shay}
Built:
11-21-1899
Class:
B
40-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.21
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 44"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
20,306 Lbs.
 Factor of
Adhesion:
4.71
 Maximum
Safe Speed:
17.2
Fuel Type:
Coal
Fuel Capacity:
3.25 Tons
Water Capacity:
1,800 Gallons
Empty Weight:
As built
74,800
Owners:
Saginaw Lbr. Co. (of Michigan), Saginaw, MI, For:
Saginaw Lbr. Co., Saginaw Southern RY #585, Williams, AZ
(12-7-1899) Saginaw and Manistee Lbr. Co., Saginaw Southern RY #585, Williams, AZ
(10-7-1919) Arizona Lbr. & Tbr. Co. Central Arizona RR #7, Cliffs, AZ
(11-05-1925) Arizona Lbr. & Tbr. Co. Central Arizona RR #7, Flagstaff, AZ
(1941) Leased to: Saginaw & Manistee Lbr. Co. #585, Flagstaff, AZ (15-year lease)
Disposition: Scrapped
Additional Notes:
