Lima Locomotive & Machine Co.
Photo Credit:

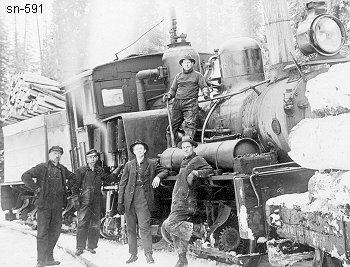

Left: Elk River Historical Society

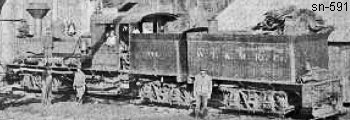

Right: by James S. Matthews
Shop Number 591 - Built for: Bayfield & Western
{536th Lima Built Shay}
Built:
2-21-1900
Class:
C
50-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 14
Gear Ratio:
2.211
Wheel Dia.:
32.5"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 46"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
27,760 Lbs.
 Factor of
Adhesion:
4.94
 Maximum
Safe Speed:
17.5
Fuel Type:
Coal
Fuel Capacity:
5 Tons
Water Capacity:
4,000 Gallons
Empty Weight:
As built
104,023
Owners:
Bayfield & Western RY Co., Bayfield & Western #11, Ashland, WI
Nebagamon Lbr. Co., Hawthorne, Nebagamon & Superior RR, Lake Nebagamon, WI
(c1907) Washington, Idaho & Montana RY Co., Washington, Idaho & Montana RY #102, Potlatch, ID
(12-31-1909) Potlatch Lbr. Co., Inc. #102, Elk River, ID
Disposition: (3-5-1929) Scrapped
Additional Notes:
