Lima Locomotive & Machine Co.
Photo Credit:

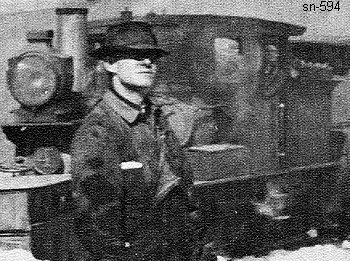

Left: by unknown

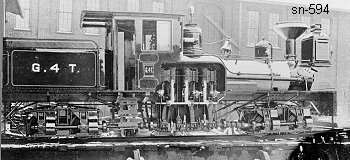

Right: George R. Kadelak collection
Shop Number 594 - Built for: Gilpin Tramway
{539th Lima Built Shay}
Built:
1-26-1900
Class:
B
17-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 8 x 8
Gear Ratio:
2.176
Wheel Dia.:
24"
Gauge:
24"
Boiler:
[Style - Dia.]
W.T. - 32"
Boiler Pressure:
In Lbs. (PSI)
150
 Tractive Effort:
9,356 Lbs.
 Factor of
Adhesion:
5.34
 Maximum
Safe Speed:
13.1
Fuel Type:
Coal
Fuel Capacity:
1.5 Tons
Water Capacity:
896 Gallons
Empty Weight:
As built
34,800
Owners:
Gilpin Tramway Co., Gilpin Tramway #4, Black Hawk, CO
(7-29-1906) Colorado & Southern RY Co., Gilpin RR #4, Black Hawk, CO
M. S. & A. H. Redaske (D), Denver, CO *
Morse Bros. Machinery Co. (D), Denver, CO *
(1917) For sale
Disposition: Never sold, scrapped c1938
Additional Notes: * Owned by Dealer
