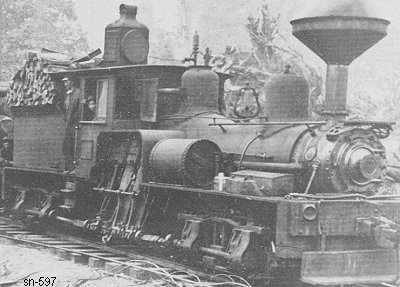

Lima Locomotive & Machine Co.

Photo Credit:
Lee Pickett collection
Shop Number 597 - Built for: Mill Valley & Mt. Tamalpais Scenic RY
{542nd Lima Built Shay}
Built:
3-13-1900
Class:
B
23-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 8.5 x 12
Gear Ratio:
2.529
Wheel Dia.:
28"
Gauge:
std.
Boiler:
[Style - Dia.]

W.T. - 36"
Boiler Pressure:
In Lbs. (PSI)
160
Tractive Effort:
9,397 Lbs.
Factor of
Adhesion:

6.25
Maximum
Safe Speed:

13.2
Fuel Type:
Coal
Fuel Capacity:
0.75 Tons
Water Capacity:
1,234 Gallons
Empty Weight:
As built
47,400
Owners:
Mill Valley & Mt. Tamalpais Scenic RY #1, Mill Valley, CA
(1904) Deep River Log. Co. #1 (1st), Deep River, WA
(11-22-1909) Campbell Log. Co. #1, Deep River, WA
Campbell Lbr. Co. #1, Skamokawa, WA
(9-1911) Leona Mills Lbr. Co. #2, Leona, OR
(3-22-1927) Roy A. Beebe #2, Leona, OR
(1-1929) R. A. Beebe Lbr. Co. #2, Leona, OR
Disposition: Scrapped
Additional Notes: Converted to wood burner
