Lima Locomotive & Machine Co.

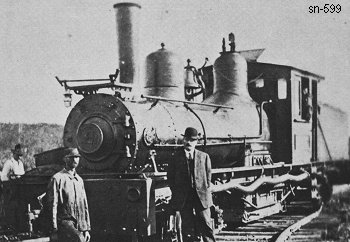

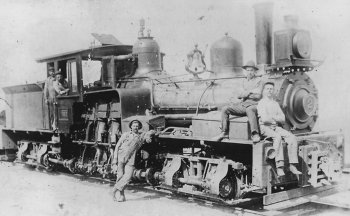

Photo Credit:
Left: Beatrice Kerin - Right: James Tate & Robert Ely
Shop Number 599 - Built for: Babcock Lbr. Co.
{544th Lima Built Shay}
Built:
4-3-1900
Class:
B
40-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.21
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 44"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
20,306 Lbs.
 Factor of
Adhesion:
4.45
 Maximum
Safe Speed:
17.2
Fuel Type:
Coal
Fuel Capacity:
3.25 Tons
Water Capacity:
1,750 Gallons
Empty Weight:
As built
70,000
Owners:
Babcock Lbr. Co., Ashtola & Allegheny Mountain RR #2, "FRED", Ashtola, PA
(1902) Blackwater Lbr. Co, Davis, WV
(1907) Babcock Lbr. & Boom Co., Davis, WV
(12-20-1909) Tellico River Lbr. Co. #4, Tellico Plains, TN
(5-5-1924) For sale
Disposition: Scrapped
Additional Notes:
