Lima Machine Works

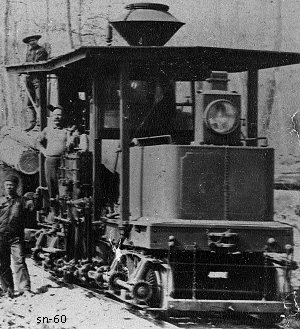

Photo Credit:
Top: Shay family collection (BP 1-1883)
Right: C. T. Stoner collection
Shop Number 60 - Built for: Foster, Blackman & Co.
{36th Lima Built Shay}
Built:
1-24-1883
Class:
A
11-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
2 - 8x8
Gear Ratio:
2.05
Wheel Dia.:
26"
Gauge:
48"
Boiler:
[Style - Dia.]
Vert.- 48"
Boiler Pressure:
In Lbs. (PSI)
100
 Tractive Effort:
3,028 Lbs.
 Factor of
Adhesion:
6.41
 Maximum
Safe Speed:
15.1
Fuel Type:
Coal
Fuel Capacity:
1 Ton
Water Capacity:
825 Gallons
Empty Weight:
As built
12,000
Owners:
Foster, Blackman & Co., "H. B. BLACKMAN", Baldwin, MI
Disposition: Scrapped
Additional Notes:
