Lima Locomotive & Machine Co.

Photo Credit:
George R. Kadelak collection

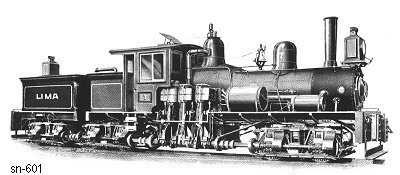

Shop Number 601 - Built for: Lackawanna Lbr. Co.
{546th Lima Built Shay}
Built:
5-9-1900
Class:
C
50-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12.5 x 12
Gear Ratio:
2.211
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 46"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
26,222 Lbs.
 Factor of
Adhesion:
4.56
 Maximum
Safe Speed:
17.2
Fuel Type:
Coal
Fuel Capacity:
5 Tons
Water Capacity:
3,033 Gallons
Empty Weight:
As built
90,830
Owners:
Lackawanna Lbr. Co., #7, Mina, PA
(1903) Lackawanna Lbr. Co. #7, Cross Fork, PA
(1908) J. J. Newman Lbr. Co #7 (2nd), Hattiesburg, MS
Disposition: (9-1937) Scrapped
Additional Notes: new boiler 4-29-1927
