Lima Locomotive & Machine Co.

Photo Credit:
David Price collection

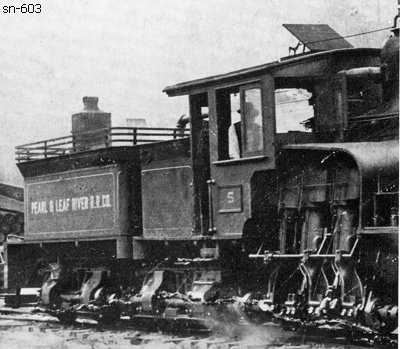

Shop Number 603 - Built for: J. J. Newman Lbr. Co.
{548th Lima Built Shay}
Built:
6-5-1900
Class:
C
50-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 12
Gear Ratio:
2.21
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 44"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
24,166 Lbs.
 Factor of
Adhesion:
4.56
 Maximum
Safe Speed:
17.2
Fuel Type:
Coal
Fuel Capacity:
5 Tons
Water Capacity:
2,194 Gallons
Empty Weight:
As built
85,340
Owners:
J. J. Newman Lbr. Co., Pearl & Leaf Rivers RR #5, Hattiesburg, MS
Disposition: (by 1928) Scrapped
Additional Notes:
