Lima Locomotive & Machine Co.

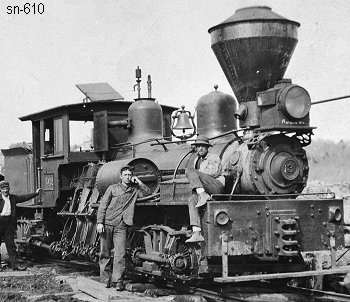

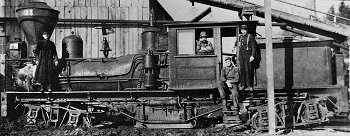

Photo Credit:
Left: by Edward Beebe
Right: Esther White Morse collection from Bill Rosa
Shop Number 610 - Built for: C. A. Goodyear
{555th Lima Built Shay}
Built:
9-29-1900
Class:
B
25-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 8 x 12
Gear Ratio:
2.176
Wheel Dia.:
26"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 36"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
13,016 Lbs.
 Factor of
Adhesion:
4.24
 Maximum
Safe Speed:
14.2
Fuel Type:
Coal
Fuel Capacity:
1.75 Tons
Water Capacity:
1,040 Gallons
Empty Weight:
As built
43,000
Owners:
C. A. Goodyear #3, Tomah, WI
(c1907) The Smith & Hull Co. #3, Stratford, MI
(5-15-1909) The Smith & Hull Co., Manitou Limited RR #3, Crescent (North Manitou Island), MI
(5-15-1909) Leased to: Davenport Brothers Manitou Limited RR #3, Crescent (North Manitou Island), MI
(8-1915) [42"] W.M. Ritter Lbr. Co., Big Sandy & Cumberland RR #3, Hurley, VA
Disposition: (4-17-1946) Scrapped
Additional Notes: (8-19-1915) Converted to 42" gauge by Lima Locomotive Corp.
