Lima Locomotive & Machine Co.

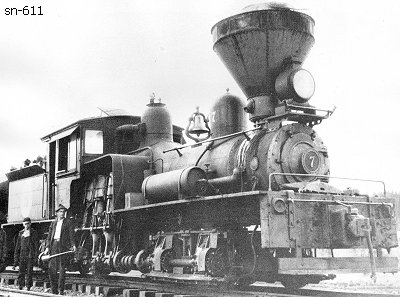

Photo Credit:
John Labbe collection
Shop Number 611 - Built for: Joe Parker
{556th Lima Built Shay}
Built:
12-24-1900
Class:
B
40-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.21
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 44"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
20,306 Lbs.
 Factor of
Adhesion:
4.15
Maximum
Safe Speed:
17.2
Fuel Type:
Wood & Coal
 Fuel Capacity:
2 Cords / 3.25 Tons
Water Capacity:
1,751 Gallons
Empty Weight:
As built
64,000
Owners:
W. D. Hofius & Co. (D), Seattle, WA
Joe Parker (Parker Brothers & Hiatt Logging Co). #1, Pilchuck, WA
Parker-Bell Lbr. Co. #1, Pilchuck, WA
Phoenix Log. Co. #4 (1st), Potlatch, WA
(c1917) Charles K. Spaulding Log. Co. (Marys River Log. Co. #7), Philomath, OR
(11-1920) Charles K. Spaulding Log. Co. (Spaulding-Miami Co. #7), Grand Ronde, OR
(9-1924) Oregon Coast Range Lbr. Co. #7, Grand Ronde, OR
(8-19-1926) Polk Operating Co. #7, Grand Ronde, OR
Disposition: Scrapped
Additional Notes: Converted to oil burner
