Lima Locomotive & Machine Co.

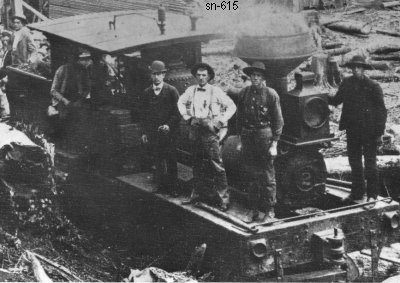

Photo Credit:
Frank E. Wilson collection
Shop Number 615 - Built for: The Wilson Lbr. Co.
{560th Lima Built Shay}
Built:
5-26-1900
Class:
A
17-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
2 - 8 x 12
Gear Ratio:
3.071
Wheel Dia.:
26.5"
Gauge:
36"
Boiler:
[Style - Dia.]
Boot - 44"
Boiler Pressure:
In Lbs. (PSI)
160
 Tractive Effort:
10,680 Lbs.
 Factor of
Adhesion:
3.01
 Maximum
Safe Speed:
10.3
Fuel Type:
Wood
Fuel Capacity:
0.75 Cord
Water Capacity:
630 Gallons
Empty Weight:
As built
26,600
Owners:
Wilson Lbr. Co. #2, Elkins, WV
H. J. Wilmoth & Son, Pocahontas RR #2, Boyer, WV
J. A. Dowler, Frenchton, WV
(1-19-1921) Ralph H. Ely Co. #2, Frenchton, WV
Disposition: Scrapped
Additional Notes:
