Lima Locomotive & Machine Co.

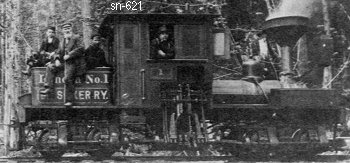

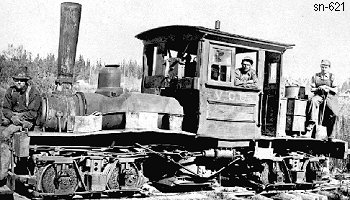

Photo Credit:
Left: British Columbia Archives
Right: From the Michael Smith collection
Shop Number 621 - Built for: Mt. Sicker RY
{566th Lima Built Shay}
Built:
10-3-1900
Class:
A
10-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
2 - 6 x 10
Gear Ratio:
2.5
Wheel Dia.:
22"
Gauge:
36"
Boiler:
[Style - Dia.]
Boot - 30
Boiler Pressure:
In Lbs. (PSI)
150
 Tractive Effort:
4,602 Lbs.
 Factor of
Adhesion:
4.16
Maximum
Safe Speed:
10.5
Fuel Type:
Wood
Fuel Capacity:
0.33 Cord
Water Capacity:
232 Gallons
Empty Weight:
As built
17,000
Owners:
W. D. Hofius & Co. (D), Seattle, WA
Lenora, Mount Sicker Copper Mining Co., Lenora, Mt Sicker RY #1 "LENORA", Lenora, BC, CAN
(c1904) H. M. Ellis, Ltd. #1, Lombard, BC, CAN
Surrey Shingle Co., Ltd. #1, Surrey, BC, CAN
Canadian Willamette Co., Ltd. (D), Vancouver, BC, CAN
Disposition: (1919) Scrapped
Additional Notes:
