Lima Locomotive & Machine Co.
Photo Credit:

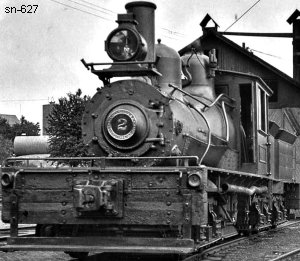

Left: by unknown

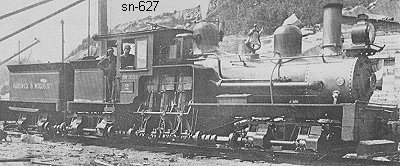

Right: John Henderson collection (1912)
Shop Number 627 - Built for: Hardwick & Woodbury RR
{572nd Lima Built Shay}
Built:
2-20-1901
Class:
C
50-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 12
Gear Ratio:
2.21
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 46"
Boiler Pressure:
In Lbs. (PSI)
160
 Tractive Effort:
21,481 Lbs.
 Factor of
Adhesion:
5.44
 Maximum
Safe Speed:
17.2
Fuel Type:
Coal
Fuel Capacity:
5 Tons
Water Capacity:
2,194 Gallons
Empty Weight:
As built
91,750
Owners:
Hardwick & Woodbury RY Co., Hardwick & Woodbury RR #2 "JOHN S. HOLDEN", Hardwick, VT
(7-8-1937) St. Johnsbury & Lake Champlain RR Co., St. Johnsbury & Lake Champlain RR #2, Montpelier, VT (not used)
Disposition: Scrapped
Additional Notes:
