Lima Locomotive & Machine Co.

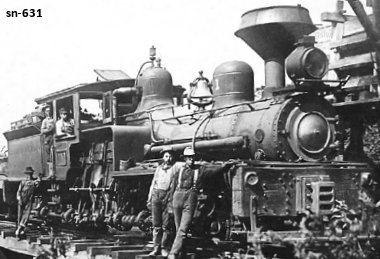

Photo Credit:
David Thomas collection
Shop Number 631 - Built for: Port Susan Log. Co.
{576th Lima Built Shay}
Built:
3-26-1901
Class:
B
40-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.21
Wheel Dia.:
33"
Gauge:
std.
Boiler:
[Style - Dia.]

W.T. - 44"
Boiler Pressure:
In Lbs. (PSI)
180
Tractive Effort:
19,691 Lbs.
Factor of
Adhesion:

4.57
Maximum
Safe Speed:

17.8
Fuel Type:
Coal
Fuel Capacity:
3.25 Tons
Water Capacity:
1,751 Gallons
Empty Weight:
As built
70,200
Owners:
W. D. Hofius & Co. (D), Seattle, WA, (for stock)
Port Susan Log. Co. #1 "PORT SUSAN", Florence [Port Susan], WA
(5-1907) Ebey Log. Co., Marysville & Arlington RY #1, Arlington, WA
(1915) Ebey Log. Co., Marysville & Arlington RR #1, Arlington, WA
(6-17-1927) For sale
(1927) H. J. Armstrong Co.(D), Seattle, WA
Disposition: Scrapped
Additional Notes: The Marysville & Arlington RY Co. became the Marysville & Arlington RR Co. in 1915, however the operating railroad was always Marysville & Arlington RY.
