Lima Locomotive & Machine Co.

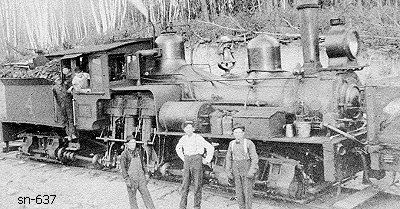

Photo Credit:
Hubbard County collection
Shop Number 637 - Built for: Nebagamon Lbr. Co.
{582nd Lima Built Shay}
Built:
4-13-1901
Class:
B
40-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.21
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 44"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
20,306 Lbs.
 Factor of
Adhesion:
4.61
 Maximum
Safe Speed:
17.2
Fuel Type:
Coal
Fuel Capacity:
3.25 Tons
Water Capacity:
1,751 Gallons
Empty Weight:
As built
73,690
Owners:
Nebagamon Lbr. Co., Hawthorne, Nebagamon & Superior RR #4, Lake Nebagamon, WI
Red River Lbr. Co. #4, Akeley MN
Disposition: Scrapped
Additional Notes:
