Lima Locomotive & Machine Co.

Photo Credit:
George R. Kadelak collection (c1904)

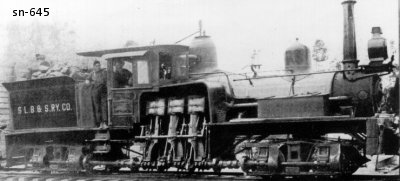

Shop Number 645 - Built for: Long-Bell Lbr. Co.
{590th Lima Built Shay}
Built:
2-9-1901
Class:
B
28-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 10
Gear Ratio:
2.05
Wheel Dia.:
29.5"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 40"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
14,072 Lbs.
 Factor of
Adhesion:
4.79
 Maximum
Safe Speed:
17.1
Fuel Type:
Coal
Fuel Capacity:
1.75 Tons
Water Capacity:
1,567 Gallons
Empty Weight:
As built
52,090
Owners:
Globe Lbr. Co. (Long-Bell Lbr. Co.), Sibley, Lake Bisteneau & Southern RY #4, Yellow Pine, LA
Arkansas Short Leaf Lbr. Co. (Long-Bell Lbr. Co.), Pine Bluff, AR
(11-13-1920) Wrecked
Pine Bluff Iron Works #4 (rebuilt after wreck), Pine Bluff, AR
(4-14-1921) Bearden Gravel Co., Bearden, AR
(1-30-1929) Central Sand & Gravel Co., Radway, AR
Disposition: (c2-1929) Trucks, engines, tank & other parts from sn-645 used to repair sn-1903 at Radway, AR
Additional Notes:
