Lima Locomotive & Machine Co.

Photo Credit:
David Thomas collection

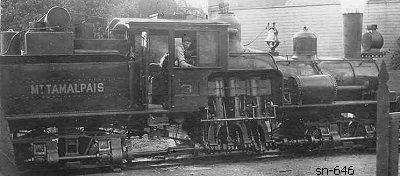

Shop Number 646 - Built for: Mill Valley & Mt. Tamalpais Scenic RY
{591st Lima Built Shay}
Built:
4-25-1901
Class:
B
32-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 10
Gear Ratio:
2.529
Wheel Dia.:
28"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 42"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
18,290 Lbs.
 Factor of
Adhesion:
4.15
 Maximum
Safe Speed:
13.2
Fuel Type:
Coal
Fuel Capacity:
1.75 Tons
Water Capacity:
1,238 Gallons
Empty Weight:
As built
61,810
Owners:
Mill Valley & Mt. Tamalpais Scenic RY #3 (2nd) "TAMALPAIS", Mill Valley, CA
(1913) Mt. Tamalpais & Muir Woods RY #3, Mill Valley, CA
(9-1915) California & Oregon Power Co., Hornbrook, CA
(1917) Leased to: Hetch Hetchy RR, Groveland, CA
(5-1921) Flora Log. Co., Carlton & Coast RR #3, Tillamook Gate, OR
(5-21-1923) Flora Log. Co., Carlton & Coast RR #2 (2nd), Carlton, OR
Northwestern Equip. Co. (D), Portland, OR
(4-1925) Union Lbr. Co. #5 (1st), Fort Bragg, CA
(9-31-1925) Leased to: California Western RR & Navigation Co. #5 (2nd), Fort Bragg, CA
Disposition: (10-10-1929) Scrapped
Additional Notes: Carlton & Coast RR ran from Carlton to Tillamook Gate
