Lima Locomotive & Machine Co.

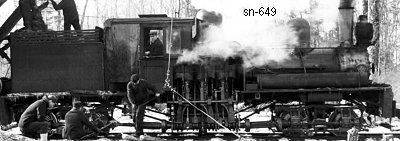

Photo Credit:
"Wisconsin Shortline and Logging Steam Locomotives," by Thomas E. Burg
Shop Number 649 - Built for: Cleveland Cliffs Iron Co.
{594th Lima Built Shay}
Built:
4-6-1901
Class:
B
40-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.21
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 44"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
20,306 Lbs.
 Factor of
Adhesion:
4.57
Maximum
Safe Speed:
17.2
Fuel Type:
Coal
Fuel Capacity:
3.25 Tons
Water Capacity:
1,751 Gallons
Empty Weight:
As built
73,000
Owners:
Cleveland Cliffs Iron Co. #3, Gladstone, MI
Gurney Lbr. Co., Gurney, WI
(9-11-1918) Upham & Alger #3, Gurney, WI
W. A. Curtis #3, Land O' Lakes, WI
(9-27-1921) for sale at Land O' Lakes, WI
(1923) Hackley-Phelps-Bonnell Co. #3, Phelps, WI
(6-12-1925) Wisconsin-Michigan Lbr. Co. #3, Land O' Lakes, WI
Disposition: Scrapped
Additional Notes: (7-13-1928) no more repairs will be put on 649
