Lima Locomotive & Machine Co.

Photo Credit:
James Tate & Robert Ely collection

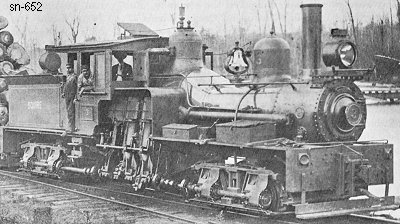

Shop Number 652 - Built for: Babcock Lbr. Co.
{597th Lima Built Shay}
Built:
5-11-1901
Class:
B
40-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.21
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]

W.T. - 44"
Boiler Pressure:
In Lbs. (PSI)
180
Tractive Effort:
20,306 Lbs.
Factor of
Adhesion:

4.77
Maximum
Safe Speed:

17.2
Fuel Type:
Coal
Fuel Capacity:
3.25 Tons
Water Capacity:
1,751 Gallons
Empty Weight:
As built
77,000
Owners:
Babcock Lbr. Co., Ashtola & Allegheny Mountain RR #3 "SQUIRE", Ashtola, PA
(1-17-1921) Babcock Lbr. & Boom Co. #652, Davis, WV
(12-1928) For sale
Disposition: Scrapped
Additional Notes:
