Lima Locomotive & Machine Co.
Photo Credit:

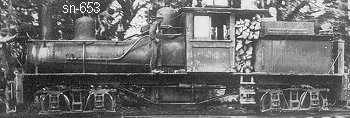

Left: Martin E. Hansen collection

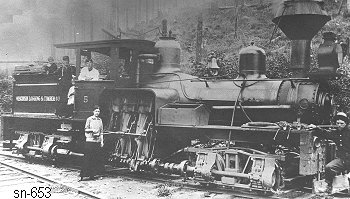

Right: John Henderson collection
Shop Number 653 - Built for: Deep River Log. Co.
{598th Lima Built Shay}
Built:
7-5-1901
Class:
B
28-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 10
Gear Ratio:
2.05
Wheel Dia.:
28"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 40"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
14,826 Lbs.
 Factor of
Adhesion:
4.94
 Maximum
Safe Speed:
16.3
Fuel Type:
Wood
Fuel Capacity:
1.75 Cords
Water Capacity:
1,045 Gallons
Empty Weight:
As built
61,000
Owners:
Deep River Log. Co. #653, Deep River, WA
Benson Log. & Lumbering Co. #653, Oak Point, WA
(4-1906) Wisconsin Log. & Tbr. Co. #5, Stella, WA
(9-17-1924) Midway Log. Co. #5, Stella, WA
(3-12-1927) New Grand Ronde Lbr. Co., Willamina, OR
Disposition: Scrapped
Additional Notes: Converted to oil burner
