Lima Locomotive & Machine Co.

Photo Credit:
Granite Falls Historical Museum collection

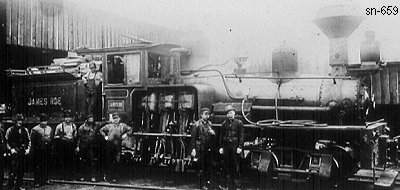

Shop Number 659 - Built for: Stimson Mill Co.
{604th Lima Built Shay}
Built:
6-20-1901
Class:
B
32-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 12
Gear Ratio:
2.05
Wheel Dia.:
29.5"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 42"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
16,886 Lbs.
 Factor of
Adhesion:
4.09
Maximum
Safe Speed:
17.1
Fuel Type:
Wood
Fuel Capacity:
2 Cords
Water Capacity:
1,586 Gallons
Empty Weight:
As built
54,000
Owners:
Stimson Mill Co., Marysville & Northern RY "JAMES ROE", Marysville, WA
(9-17-1913) The Regal Log. Co., Van Zandt, WA
(1-24-1921) Stetson & Post Lbr. Co. #1, Maple Valley, WA
(10-18-1928) Klement & Kennedy, #4, Fortson, WA
Disposition: Scrapped
Additional Notes:
