Lima Locomotive & Machine Co.

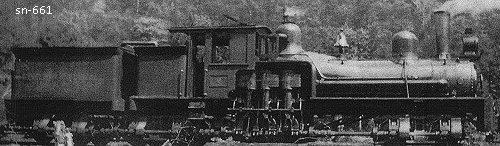

Photo Credit:
David Thomas collection
Shop Number 661 - Built for: Cherry River Boom & Lbr. Co.
{606th Lima Built Shay}
Built:
8-29-1901
Class:
C
50-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12.5 x 12
Gear Ratio:
2.211
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]

W.T. - 46"
Boiler Pressure:
In Lbs. (PSI)
180
Tractive Effort:
26,222 Lbs.
Factor of
Adhesion:

5.04
Maximum
Safe Speed:

17.2
Fuel Type:
Coal
Fuel Capacity:
5 Tons
Water Capacity:
3,033 Gallons
Empty Weight:
As built
101,900
Owners:
Cherry River Boom & Lbr. Co. #2, Richwood, WV
(5-14-1943) West Virginia Coal & Coke Co., Omar, WV
Disposition: (1-27-1947) Scrapped
Additional Notes:
