Lima Locomotive & Machine Co.

Photo Credit:
by Axtell from Pete Repliger collection

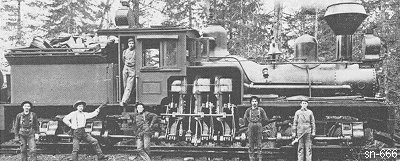

Shop Number 666 - Built for: Phoenix Log. Co.
{611th Lima Built Shay}
Built:
8-22-1901
Class:
B
40-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.21
Wheel Dia.:
33"
Gauge:
std.
Boiler:
[Style - Dia.]

W.T. - 44"
Boiler Pressure:
In Lbs. (PSI)
180
Tractive Effort:
19,691 Lbs.
Factor of
Adhesion:

4.66
Maximum
Safe Speed:

17.8
Fuel Type:
Wood & Coal
Fuel Capacity:
2 Cords/ 3.25 Tons
Water Capacity:
1,751 Gallons
Empty Weight:
As built
71,230
Owners:
Phoenix Log. Co. #1 (2nd), Potlatch, WA
(1-1922) Maytown Lbr. Co. #1, Maytown, WA
(1926) Estate of George Simpson, #1, Maytown, WA
(1926) Leased to: McKay & Swan #1, Maytown, WA
(3-28-1929) Hofius Steel & Equip. Co.(D), Seattle, WA *
Disposition: (4-1934) Scrapped
Additional Notes: (1922) The mill was sold but Maytown Lbr. Co. continued logging operations.
* Owned by Dealer
