Lima Locomotive & Machine Co.
Photo Credit:

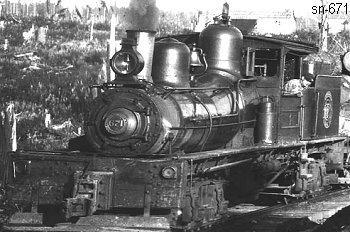

Left: by Clark Kinsey

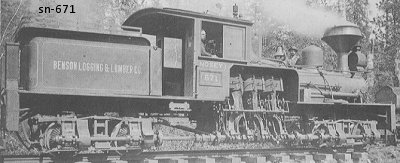

Right: Arthur Clarkson collection
Shop Number 671 - Built for: Benson Log. & Lumbering Co.
{616th Lima Built Shay}
Built:
10-7-1901
Class:
B
28-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 10
Gear Ratio:
2.05
Wheel Dia.:
28"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 40"
Boiler Pressure:

In Lbs. (PSI)180
 Tractive Effort:
14,826 Lbs.
 Factor of
Adhesion:
4.11
Maximum
Safe Speed:
16.3
Fuel Type:
Wood
Fuel Capacity:
1.75 Cords
Water Capacity:
1,045 Gallons
Empty Weight:
As built
49,000
Owners:
Benson Log. & Lumbering Co. #671 "NOSEY", Oak Point, WA
(1908) Bradley Log. Co. #1 (1st), Cathlamet, WA
(5-17-1912) Leased to: J. B. Miller Log. Co. #1, Cathlamet, WA
(1-3-1913) Leased to: Cathlamet Tbr. Co. (Portland Lbr. Co.) #1, Cathlamet, WA
(8-29-1922) Bradley Log. Co. #1, Cathlamet, WA
(1-1-1924) Crown Willamette Paper Co. #1, Cathlamet, WA
(05-10-1926) For sale
H. G. Armstrong Co., Portland, OR
(8-10-1926) Penn Lbr. Co. #1 (2nd), McGlynn, OR
(by 11-22-1928) Green River Lbr. Co., McIntosh, WA
Disposition: ( 1920's) Scrapped
Additional Notes: new firebox by Williamette 7-23-1925
