Lima Locomotive & Machine Co.
Photo Credit:

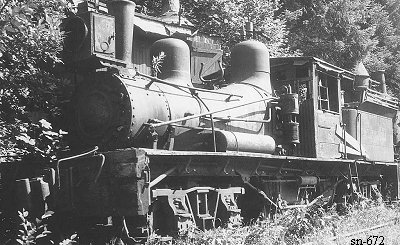

Left: Martin E. Hansen collection

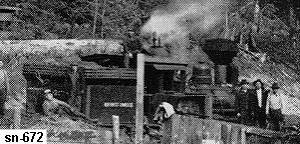

Right: by Darius Kinsey
Shop Number 672 - Built for: Hofius Steel & Equip. Co.
{617th Lima Built Shay}
Built:
12-26-1901
Class:
B
32-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 12
Gear Ratio:
2.05
Wheel Dia.:
29.5"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 42"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
16,886 Lbs.
 Factor of
Adhesion:
4.34
 Maximum
Safe Speed:
17.1
Fuel Type:
Wood
Fuel Capacity:
2 Cords
Water Capacity:
1,586 Gallons
Empty Weight:
As built
58,700
Owners:
Hofius Steel & Equip. Co. (D), Seattle, WA, (for stock)
Northwest Lbr. Co. #1 later #2 (in 1909), Kerriston, WA
(10-26-1936) Kerriston Shingle Co. #2, Kerriston, WA
Disposition: Scrapped
Additional Notes:
