Lima Locomotive & Machine Co.

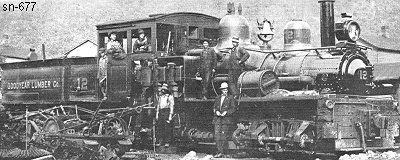

Photo Credit:
by Herbert Johnson (1909) from Benjamin F. G. Kline, Jr. collection
Shop Number 677 - Built for: F.H. & C.W. Goodyear
{622nd Lima Built Shay}
Built:
11-16-1901
Class:
C
65-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 14.5 x 12
Gear Ratio:
2.056
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 48"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
29,093 Lbs.
 Factor of
Adhesion:
5.50
Maximum
Safe Speed:
20.9
Fuel Type:
Coal
Fuel Capacity:
5 Tons
Water Capacity:
3,032 Gallons
Empty Weight:
As built
127,500
Owners:
F.H. & C.W. Goodyear #12, Genesee, PA
F.H. & C.W. Goodyear #12, Austin, PA
F.H. & C.W. Goodyear #12, Galeton, PA
(1910) Potato Creek RR Co., Potato Creek RR #2, Norwich, PA
Disposition: Scrapped
Additional Notes: F.H. & C.W. Goodyear was Frank Henry and his brother, Charles Waterhouse Goodyear.
