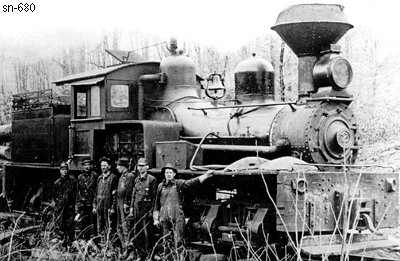

Lima Locomotive & Machine Co.

Photo Credit:
George R. Kadelak collection
Shop Number 680 - Built for: Pardee & Curtin Lbr. Co.
{625th Lima Built Shay}
Built:
10-8-1901
Class:
B
32-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 12
Gear Ratio:
2.05
Wheel Dia.:
29.5"
Gauge:
36"
Boiler:
[Style - Dia.]

W.T. - 42"
Boiler Pressure:
In Lbs. (PSI)
180
Tractive Effort:
16,886 Lbs.
Factor of
Adhesion:

4.69
Maximum
Safe Speed:

17.1
Fuel Type:
Coal
Fuel Capacity:
2 Tons
Water Capacity:
1,567 Gallons
Empty Weight:
As built
63,000
Owners:
Pardee & Curtin Lbr. Co., Cherry & Hominy RR #2, Curtin, WV
(10-6-1928) Pardee & Curtin Lbr. Co., Bergoo, WV
Disposition: Scrapped
