Lima Locomotive & Machine Co.

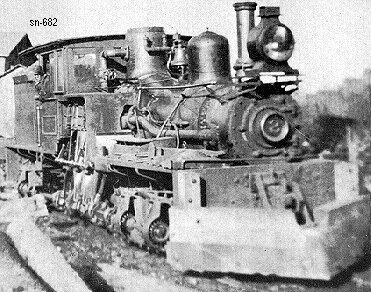

Photo Credit:
W. Raymond Hicks collection
Shop Number 682 - Built for: Condon-Lane Boom & Lbr. Co.
{626th Lima Built Shay}
Built:
11-16-1901
Class:
B
33-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 12
Gear Ratio:
2.529
Wheel Dia.:
28"
Gauge:
std.
Boiler:
[Style - Dia.]

W.T. - 42"
Boiler Pressure:
In Lbs. (PSI)
180
Tractive Effort:
21,948 Lbs.
Factor of
Adhesion:

3.48
Maximum
Safe Speed:

13.2
Fuel Type:
Coal
Fuel Capacity:
2 Tons
Water Capacity:
1,586 Gallons
Empty Weight:
As built
60,000
Owners:
Condon-Lane Boom & Lbr. Co. #2, Horton, WV
(1909) Parsons Pulp & Lbr. Co. #2, Horton, WV
(10-10-1919) Whitmer-Parsons Pulp & Lbr. Co. #2, Horton, WV
Disposition: Scrapped
Additional Notes:
