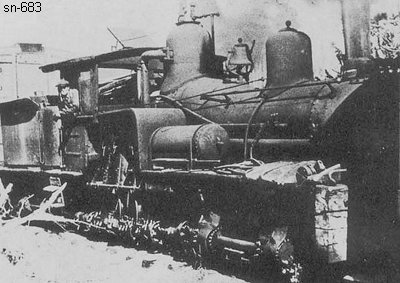

Lima Locomotive & Machine Co.

Photo Credit:
Brian Westhouse collection
Shop Number 683 - Built for: Alexander & Edgar Lbr. Co.
{627th Lima Built Shay}
Built:
12-4-1901
Class:
B
32-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 10 x 12
Gear Ratio:
2.05
Wheel Dia.:
29.5"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 42"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
16,886 Lbs.
 Factor of
Adhesion:
4.52
 Maximum
Safe Speed:
17.1
Fuel Type:
Coal
Fuel Capacity:
2 Tons
Water Capacity:
1,586 Gallons
Empty Weight:
As built
60,000
Owners:
Alexander & Edgar Lbr. Co., #4, Iron River, WI
(1905) Gunflint & Lake Superior RR Co., Gunflint Lake, MN
(c9-1909) Holt Lbr. Co., Townsend, WI
(2-22-1922) Holt Lbr. Co., Ardbeg ONT, CAN
(5-17-1928) For sale
Disposition: Scrapped
Additional Notes:
