Lima Locomotive & Machine Co.

(1950's with steel cab)

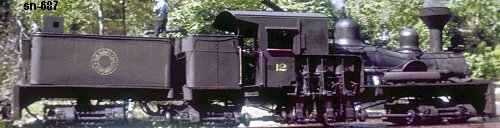

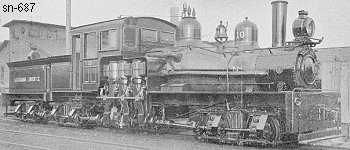

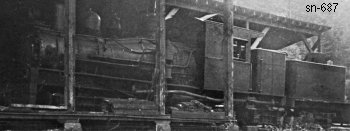

Photo Credit:
Top Left: Thomas T. Taber III collection - Top Right: George R. Kadelak collection
Bottom: by Dave Marquis

Shop Number 687	-	Built for: Lackawanna Lumber Co.
{631st Lima Built Shay}

Built: 1-24-1902	Class: C 65-3	Trucks: 3	Cylinders: [#-Dia. x Stroke] 3 - 14.5 x 12
Gear Ratio: 2.056	Wheel Dia.: 36"	Gauge: std.	Boiler: [Style - Dia.] E.W.T. - 48"
Boiler Pressure: In Lbs. (PSI) 180	Tractive Effort: 29,093 Lbs.	Factor of Adhesion: 5.48	Maximum Safe Speed: 20.9
Fuel Type: Coal	Fuel Capacity: 5 Tons	Water Capacity: 3,000 Gallons	Empty Weight: As built 127,000
Owners: Lackawanna Lbr. Co. #10, Cross Fork, PA (c1910) Emporium Lbr. Co. #10, Galeton, PA (c1917) Emporium Forestry Co. #40, Cranberry Lake, NY (1949-50) Heywood-Wakefield Co., Grasse River RR #40, Conifer, NY, (used on test runs only) (3-29-1950) Elk River Coal & Lbr. Co., Buffalo Creek & Gauley RR #12, Swandale, WV (1958) Ritter Lbr. Co., W. M. #12, Swandale, WV
Disposition: (6-1962) Scrapped
Additional Notes: new boiler 10-1-1925
