Lima Locomotive & Machine Co.

Photo Credit:

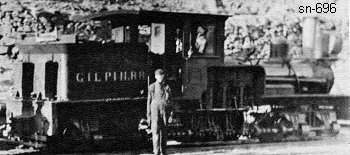

Top: by unknown

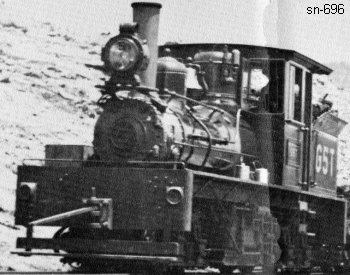

Left: by Harry Lake
Shop Number 696 - Built for: Gilpin Tramway
{640th Lima Built Shay}
Built:
4-23-1902
Class:
B
17-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 8 x 8
Gear Ratio:
2.176
Wheel Dia.:
24"
Gauge:
24"
Boiler:
[Style - Dia.]

W.T. - 32"
Boiler Pressure:
In Lbs. (PSI)
150
Tractive Effort:
7,834 Lbs.
Factor of
Adhesion:

6.47
Maximum
Safe Speed:

13.1
Fuel Type:
Coal
Fuel Capacity:
1.25 Tons
Water Capacity:
825 Gallons
Empty Weight:
As built
41,000
Owners:
Gilpin Tramway Co., Gilpin Tramway #5, Black Hawk, CO
(1906) Colorado & Southern RY Co., Gilpin RR #5, Black Hawk, CO
M. S. & A. H. Redaske (D), Denver, CO *
(1917) Morse Bros. Machinery Co. (D), Denver, CO *
(6-2-1918) For sale
Disposition: Never sold, scrapped c1938
Additional Notes: * Owned by Dealer
