Lima Locomotive & Machine Co.

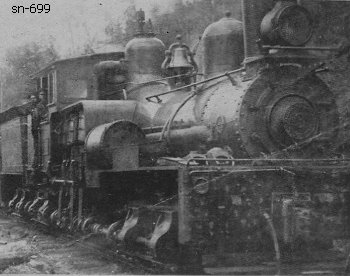

Photo Credit:
Left: Jack Holst collection - Right: David Thomas collection
Shop Number 699 - Built for: Leetonia RY
{643rd Lima Built Shay}
Built:
4-19-1902
Class:
C
50-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 12
Gear Ratio:
2.21
Wheel Dia.:
32"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 46"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
24,166 Lbs.
 Factor of
Adhesion:
4.77
 Maximum
Safe Speed:
17.2
Fuel Type:
Coal
Fuel Capacity:
5 Tons
Water Capacity:
3,033 Gallons
Empty Weight:
As built
85,000
Owners:
Leetonia RY Co., Leetonia RY #3 later #201, Leetonia, PA
(10-1-1921) Central Pennsylvania Lbr. Co. #72, Laquin, PA
(8-31-1926) C. C. Slaght Lbr. Co. #72, Morris, PA
Disposition: Scrapped
Additional Notes: (3-31-1931) Still have Shay at Morris, PA
