Lima Locomotive & Machine Co.

Photo Credit:
by Darius Kinsey

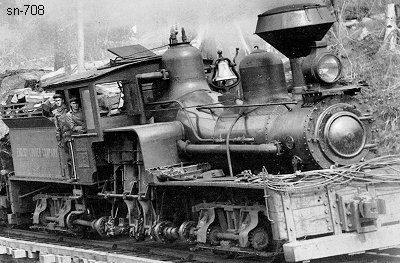

Shop Number 708 - Built for: English Lbr. Co.
{652nd Lima Built Shay}
Built:
6-16-1902
Class:
B
40-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.21
Wheel Dia.:
33"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 44"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
19,691 Lbs.
 Factor of
Adhesion:
4.92
Maximum
Safe Speed:
17.8
Fuel Type:
Wood & Coal
 Fuel Capacity:
2 Cords / 3.25 Tons
Water Capacity:
1,800 Gallons
Empty Weight:
As built
76,300
Owners:
English Lbr. Co. #1, Sedro Woolley, WA
English Lbr. Co. #1, Conway, WA
(4-1920) Goodro Log. Co. #1, Shelton, WA
(8-11-1926) For sale
Disposition: Scrapped
Additional Notes:
