Lima Locomotive & Machine Co.

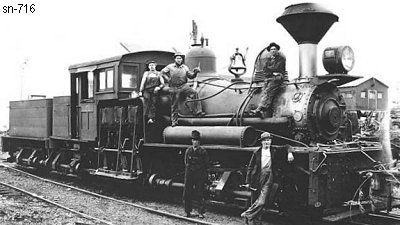

Photo Credit:
by Clark Kinsey (c1922)
Shop Number 716 - Built for: McDougall & Jackson
{660th Lima Built Shay}
Built:
8-10-1902
Class:
C
65-3
Trucks:
3
Cylinders:
[#-Dia. x Stroke]
3 - 14.5 x 12
Gear Ratio:
2.056
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]
E.W.T. - 52"
Boiler Pressure:
In Lbs. (PSI)
190
 Tractive Effort:
30,710 Lbs.
 Factor of
Adhesion:
5.76
 Maximum
Safe Speed:
20.9
Fuel Type:
Coal
 Fuel Capacity:
5 Tons
Water Capacity:
3,000 Gallons
Empty Weight:
As built
142,600
Owners:
McDougall & Jackson, Orting, WA
(1-24-1921) St. Paul & Tacoma Lbr. Co. #4, Kapowsin, WA
(12-20-1923) Panther Lake Co. #5, Three Lakes, WA
(1923) Hama Hama Log. Co. #5 (1st), Eldon, WA
(1925) Wrecked
(1927) Combined with parts from sn-688 to make one working Shay
Disposition: Scrapped
Additional Notes: Converted to oil burner
