Lima Locomotive & Machine Co.

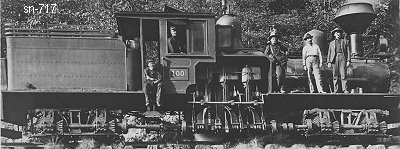

Photo Credit:
Benjamin F. G. Kline, Jr. collection (1905)
Shop Number 717 - Built for: Conemaugh Stone Co.
{661st Lima Built Shay}
Built:
6-28-1902
Class:
B
40-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 11 x 12
Gear Ratio:
2.05
Wheel Dia.:
33"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 44"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
19,691 Lbs.
 Factor of
Adhesion:
4.76
Maximum
Safe Speed:
17.8
Fuel Type:
Coal
Fuel Capacity:
3.25 Tons
Water Capacity:
1,800 Gallons
Empty Weight:
As built
73,000
Owners:
Conemaugh Stone Co., Bloom Run RR #100, Bloom Run, PA
H. S. Kerbaugh Inc. (contractor) #100, Philadelphia, PA
Southern Mineral, Land & Lbr. Co., Winnfield, LA
(7-6-1920) Southern Iron & Equip. Co. (D) #1603, Atlanta, GA *
(8-19-1920) Uvalde Rock Asphalt Co. #1, Blewett, TX
Scrapped at Blewett, TX
Disposition: Scrapped
Additional Notes: Converted to oil burner
* Owned by Dealer
