Lima Locomotive & Machine Co.
Photo Credit:

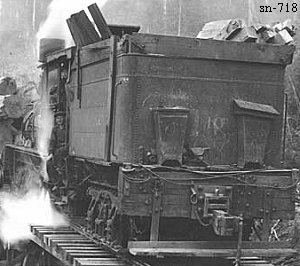

Left: by Clark Kinsey

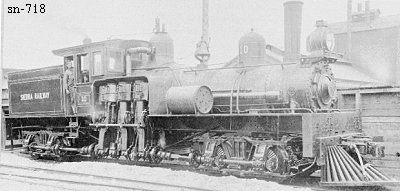

Top: George R. Kadelak collection (BP 8-1902)
Shop Number 718 - Built for: Sierra RY
{662nd Lima Built Shay}
Built:
8-15-1902
Class:
B
50-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 12 x 12
Gear Ratio:
2.21
Wheel Dia.:
36"
Gauge:
std.
Boiler:
[Style - Dia.]
W.T. - 46"
Boiler Pressure:
In Lbs. (PSI)
180
 Tractive Effort:
21,481 Lbs.
 Factor of
Adhesion:
5.29
Maximum
Safe Speed:
19.4
Fuel Type:
Oil
Fuel Capacity:
1000 Gals.
Water Capacity:
2,000 Gallons
Empty Weight:
As built
92,800
Owners:
Sierra RY Co. of California, Sierra RY #10, Jamestown, CA
(3-5-1918) Hofius Steel & Equip. Co., (D) Seattle, WA *
(4-15-1920) Walville Lbr. Co. #10, Walville, WA
(1921) Diamond Match Co. #101, Sandpoint, ID
Disposition: (1942 ) Scrapped
Additional Notes: This was the first oil burning Shay shipped by Lima.
* Owned by Dealer
