Lima Locomotive & Machine Co.

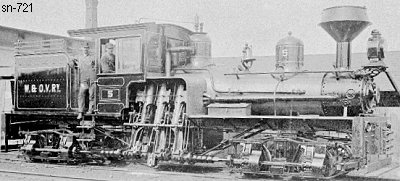

Photo Credit:
Left: George R. Kadelak collection (BP 6-1902) - Right: Bradley County Historical Museum
Shop Number 721 - Built for: Arkansas Lbr. Co.
{664th Lima Built Shay}
Built:
6-29-1902
Class:
B
25-2
Trucks:
2
Cylinders:
[#-Dia. x Stroke]
3 - 8 x 12
Gear Ratio:
2.500
Wheel Dia.:
26"
Gauge:
std.
 Boiler:
[Style - Dia.]
W.T. - 36"
Boiler Pressure:
In Lbs. (PSI)
160
 Tractive Effort:
11,570 Lbs.
 Factor of
Adhesion:
4.62
Maximum
Safe Speed:
14.2
Fuel Type:
Wood
Fuel Capacity:
1.75 Cord
Water Capacity:
1,225 Gallons
Empty Weight:
As built
41,000
Owners:
Arkansas Lbr. Co., Warren & Ouachita Valley RY #5, Warren, AR
(12-1-1920) The Brewer-Neinstadt Lbr. Co. #1, Miltonberg, LA
The Brewer-Neinstadt Lbr. Co. #1, Palmetto, LA
Disposition: Scrapped
Additional Notes: Arkansas Lbr. Co. & Southern Lbr. Co. co-owned the Warren & Ouachita Valley RY
